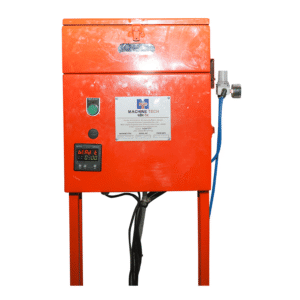

Our Shot Bead Unit is an efficient and user-friendly system for feeding plunger lubricant granules. Designed for convenience, it features an easy-to-load hopper and allows for precise adjustment of the feeding volume. The unit is versatile, capable of handling both big and small granules to suit your specific process requirements.
Operators can choose to feed beads every cycle or after multiple cycles. Equipped with an automatic warning system that alerts the operator when the material is empty. The feeding volume can be easily adjusted to match the shot weight. Applicable for use with both big and small granules.

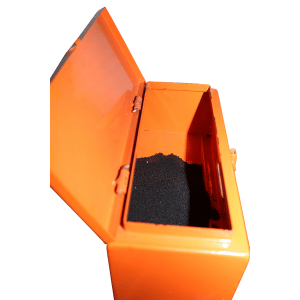

Easy to operate, coveninent in loading raw material
Can choose to feed each cycle or after multiple cycle

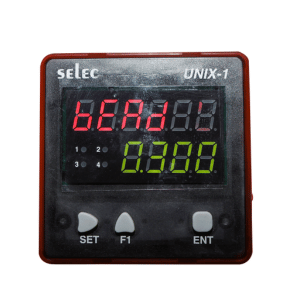

Feeding volume can be adjusted

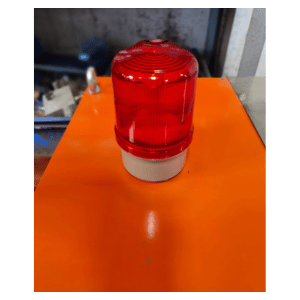

Automatic warning when material is empty
| Specification | MTSB1 | MTSB2 |
|---|---|---|
| Suitable for machine | 160-800 T | 1000T - 3000T |
| Input air pressure | 1/4, 4-5BAR | 1/4, 4-5BAR |
| Power supply | AC220 | AC220 |
| Weight | WT 17.5KG | WT 23.5KG |
