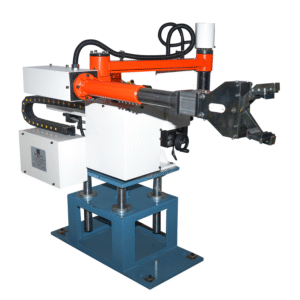

Our Automatic Extractor Machine is designed for high-speed, reliable operation in die casting environments. Driven by an induction motor with an inverter drive, it ensures fast start/stop speeds and high positioning accuracy. The traverse system utilizes a guide rail that offers high rigidity, heavy load capacity, and smooth, low-noise operation.
The arm is driven by an induction motor with an inverter drive for reliable operation and accurate positioning.
The base height is adjustable via an elevator system, making it convenient and easy to set up features. An electically operated lubrication unit for the sliding block that eliminates manual oiling, provides timed lubrication, and includes an oil shortage alarm.

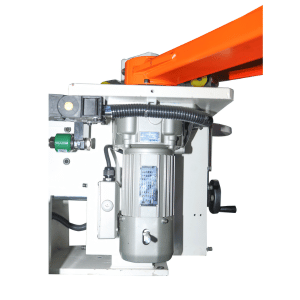

The arm is driven by induction motor with inverter drive with fast start and stop speed, high positioning accuracy and reliable operation

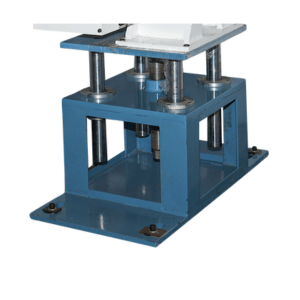

The height of base is adjustable by the elevator, it has the characteristic of convenient and easy adjustment

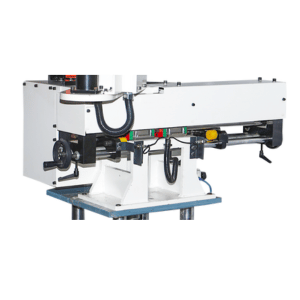

The traverse is driven by guide rail, Which has the ability of high rigidity, heavy load, small sliding resistance capacity, smooth operation and low noise operation

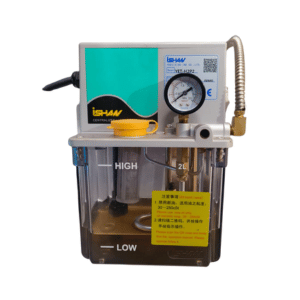

For sliding block electrically operated lubrication unit to inject oil. It has the characteristic of eliminating manual oiling, timed oiling, modular and stable oiling, oil shortage alarm
The gripper has the characteristic of stable structure, large clamping force, replaceable and wide range of clamping teeth, high reliability etc., Changing the clamping teeth can adopt to different handle size
| Specification / Model | MTE1 | MTE2 | MTE3 | MTE4 |
|---|---|---|---|---|
| 1. Suitable for DCM | 130-180T | 200-400T | 500T | 630-900T |
| 2. Fixed mold (Max) | 780mm | 12-20 | 3.5-6.0 | 8-15 |
| 3. Biscuit Diameter | ø40-80mm | ø70-120mm | ||
| 4. Extraction Weight (Max) | ≤ 3.5 KG | ≤ 8 KG | ||
| 5. Arm Stroke | 1580mm | 1800mm | 2180mm | 2260mm |
| 6. Lateral Stroke | ≤ 370mm | ≤ 470mm | ||
| 7. Adjust Range of Gripper Height | 1040-1290mm | 1180-1530mm | ||
| 8. Compressed Air | 4-6.5 kg/cm² | |||
| 9. Main Power Supply | AC 220V Single Phase with PE | |||
| 10. Control Power Supply | DC 24V | |||
| 11. Net Weight | 470 KG | 710 KG | ||
